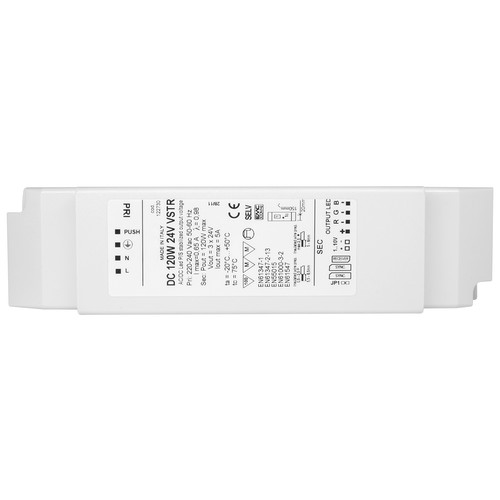

1-10V Dimmable Driver (Constant Voltage) 120W 24V

The DC120W 24V is a dimmable electronic driver with output voltage for LED modules and strip @24V. All three outputs dim together using a 1-10V dimmer. Each output is 40W, with a total of 120W.

Please note: Technical information is available on this product, see technical tab.

Standard 0/1-10V Dimmer

This is the most popular type of dimmer used with this interface as it is most commonly used in the home and will easily fit into existing back boxes. A 1-10V Wired Dimming Switch and 1-10V High Frequency Dimmer Module for creating your own switch plate are available. See technical tab above for a wiring diagram of dimming TAPE100 with this driver.

Lutron 0/1-10V Dimmer

This wired dimming switch has the same functionality and wiring as the standard 0/1-10V dimmer. Ideal for use where other Lutron switches are used and complimentary switches are required.

Wise Wireless Dimming 0/1-10V

Any Wise switch can be used in conjunction with this interface to control your Seamless DimLine/DimSlim. A WisePack 0-10V Dimming is required and connected between mains and the Feelux interface to receive the wireless signal. This option has the benefit of being able to control your fluorescents wirelessly, without the need for wiring to a fixed switch. Different switch types are available, including a small convenient keyfob switch.

RAKO Wireless Dimming 0/1-10V

Just like the Wise wireless dimming option, a RAKO Wireless Wall Switch can be used to control your fluorescents wirelessly with no need for wiring. A RAKO/Wise 0-10V Interface will need to be connected between the mains and the Feelux interface.

PIR Sensor Dimming

Alternatively, instead of using a dimmer/switch, a PIR Occupancy Switch sensor could be used which will automatically turn your lights on and off as well as dim them depending on light levels.
