Mode

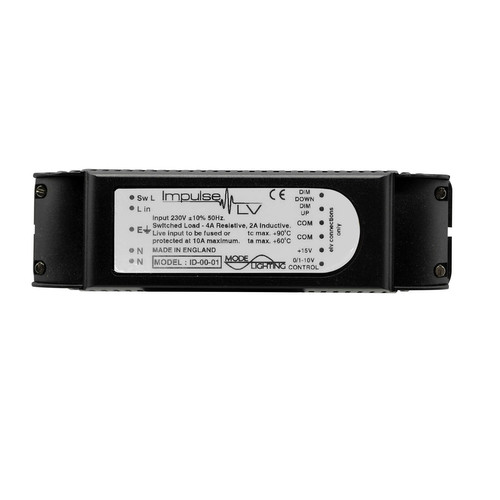

Impulse 1-10V Relay Module 1000W White
Code: ID0001 1-10VA
£114.00
In stock (1)
The Impulse 1-10V is a remote dimmer that can be operated by any momentary or centre retractive type switch. A single switch can be used to provide On, Off, Dim Up, Dim Down operation. Two switches on one plate can be used to provide On and Dim Up from one switch and Off and Dim down from the second switch.
It can also be used from multi-position, multi-gang, dimming control. Impulse LV provides mains switchig and 1-10V control of lighting loads and is suitable for control of 1-10V MF ballasts and LED drivers.
It can also control Mode Slave Power Units for highpower applications and provide switching / control of lighting / fans / and other devices.
Added to your basket.
- Depth
- 35mm
- Length
- 150mm
- Width
- 50mm
- Maximum Wattage
- 1000W
- Colour
- White
- Construction
- Plastic
