Single Output Switching LED Driver (Constant Current) 35W 350mA

Et Lumiere

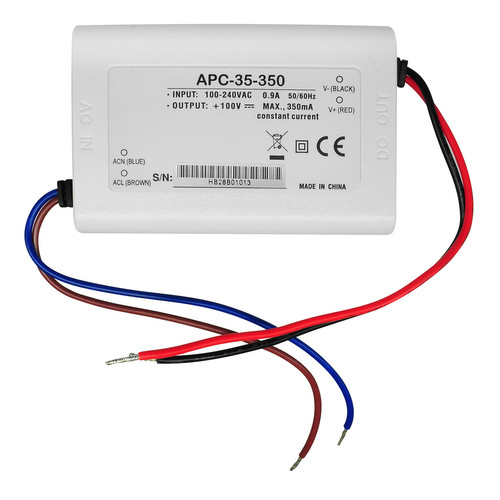

Single Output Switching LED Driver (Constant Current) 35W 350mA

Code: APC-35-350MA

£25.00

In stock (4)

The Single Output Switching LED Driver is a constant current mode power supply.

Key Features

  • Universal AC input / Full range
  • Withstand 300VAC Surge input for 5 seconds
  • Short circuit / over voltage protection
  • Fully isolated plastic case
  • Small and compact size
  • Cooling by free air convention
  • 100% full load burn-in test
  • Suitable for LED lighting and moving sign applications
  • Low cost / High reliability
  • Basket & checkout arrive in a later phase.

    Height
    30mm
    Length
    84mm
    Width
    57mm
    Amperage
    350mA
    Maximum Wattage
    35W
    Colour
    White
    Construction
    Plastic
    Dimmable
    No
