Osram

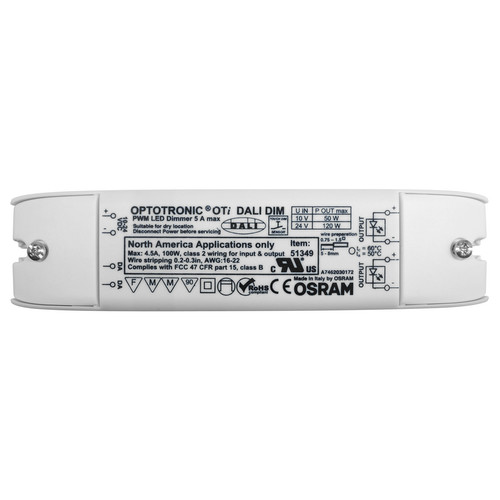

Optotronic Oti DALI-1 Dimmable Interface (Constant Voltage) 50W / 120W 10V / 24V
Code: DC OTIDALI 10-24
£96.25
In stock (1)
The Optotronic Oti Dali Dim is a intelligent electronic constant-voltage 1-channel DALI interface. Integrated TouchDIM functionality enables dimming/switching via standard switches.
Maximum output current: 5A
Cable clamp housing for independent mounting
Dimming range: 0.1 - 100 %
Reversible protection mechanisms for short-circuits, overtemperature and -loads
10V Maximum 50W
24V Maximum 120W
Dimmable
Please note: A power supply is required for this product. When using a 12V power supply the maximum load is 50W. When using a 24V power supply the maximum load is 120W.
Product features
Basket & checkout arrive in a later phase.
- Dimmable
- Yes
- Depth
- 42mm
- Height
- 20mm
- Width
- 170mm
- Maximum Wattage
- 120W
- Transformer
- Electronic
- Voltage
- 10V, 12V, 24V
- Colour
- White
- Construction
- Plastic
- IP Rating
- IP20
