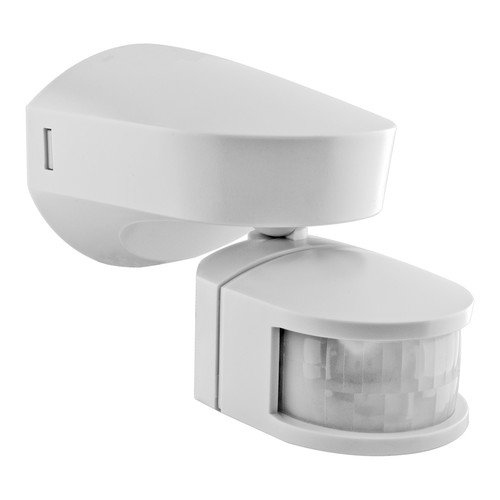

180° PIR 2300W PIR Light Controller White 2300W
Code: SLW2300 WHITE
£18.00
In stock (18)
The 180° 2300W PIR Light Controller can control loads reaching 2300 watts (max.) under a power source of 240V. It uses passive infrared technology to detect heat radiation of moving human bodies. Upon detection, the attached lighting load will
illuminate for a user-determined period of time. An integral daylight sensor
ensures all day or night-only operation.
Powerful PIR controller for new and exsisting installations.
Pan and tilt feature.
12m detection range with 180° area of detection.
Adjustable light level control.
Manual ON/OFF switching override.
Quick and easy installation.
Total PIR Switching: 2300W incandescent/ halogen, 500W fluorescent/low energy, 150W LED.
Voltage Requirement: 240V AC
Lighting Load: 2300W maximum
Adjustable Angle: Vertical 180°
Mounting Height: up to 2.5m wall mounted
Housing Design: Water resistant IP55
Auto Stop Time: 5 seconds (min.); 15 minutes (max.)
The PIR motion detector has a detection angle of 180°. It can control incandescent loads up to a maximum of 2300W or fluorescent loads up to 500W maximum or LED loads up to 140W. Fixing screws and rawplugs are included.
Features
Specification
Basket & checkout arrive in a later phase.
- Cable Length
- 12m
- Height
- 135mm
- Length
- 185mm
- Width
- 70mm
- Maximum Wattage
- 2300W
- Voltage
- 240V AC
- Colour
- White
- Construction
- Plastic
- IP Rating
- IP55
