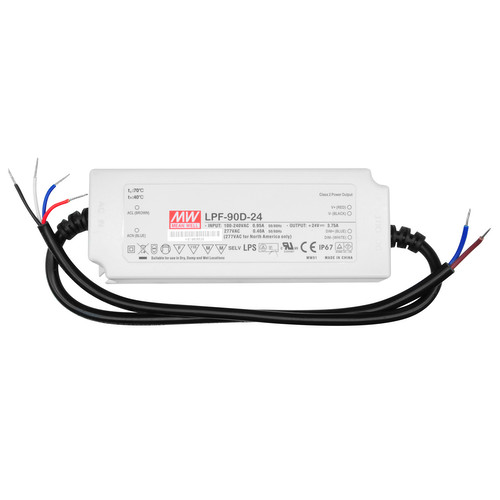

1-10V Dimming Driver (Constant Voltage) 90W 24V
Code: LPF90D24 IP67
£70.00
Out of stock
The 1-10V Dimmable Driver is an IP67 rated 24V constant voltage LED Driver with a built in 1-10V dimming function.
Please note: Technical information is available on this product.
Specification
- Universal AS input / Full range (up to 305 VAC)
- Built-in active PFC function
- High efficiency up to 90%
- Protections: Shore circuit/over current/over voltage/over temperature
- Cooling by free air convection
- Fully isolated plastic case
- Fully encapsulated with IP67 rating
- Class 2 power unit, no FG
- Built-in 3 in 1 dimming function (1-10V dc or PWM signal or resistance)
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Suitable for LED lighting and moving sign applications
- Suitable for dry/damp/wet locations
Basket & checkout arrive in a later phase.
- Depth
- 36mm
- Length
- 161mm
- Width
- 61mm
- Energy Efficiency Rating
- A
- Maximum Wattage
- 90W
- Transformer
- Electronic
- Voltage
- 24V
- Colour
- White
- Construction
- Plastic
- Dimmable
- Yes
- IP Rating
- IP67
