DALI-1 Dimmable LED Driver (Constant Current & Constant Voltage) 9W-32W 350mA, 500mA, 700mA

Et Lumiere

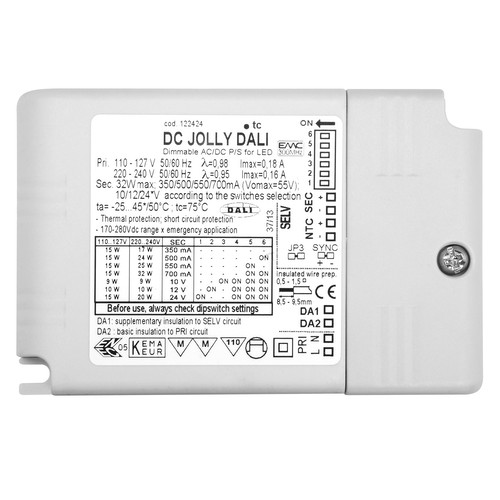

DALI-1 Dimmable LED Driver (Constant Current & Constant Voltage) 9W-32W 350mA, 500mA, 700mA

Code: DCJOLLY DALI

£50.16

In stock (44)

Save up to 10% with Multi-buy

  • Buy 2+ — save 4%
  • Buy 3+ — save 6%
  • Buy 4+ — save 8%
  • Buy 5+ — save 10%

The DCJolly Dali is a revolutionary multi voltage power supply which allows LEDs to be dimmed from any Dali dimming system.

A series of dipswitches gives the user the option to flick the output to any of the following voltages (and maximum loads):

350mA (15W), 500mA (22W {15W @ 120V}), 700mA (25W {15W @ 120V}), 10V (9W), 12V (10W), and 24V (20W {15W @ 120V}).

Depth
21mm
Length
100mm
Width
65mm
Amperage
350mA, 500mA, 700mA
Maximum Wattage
32W
Voltage
10V, 12V, 24V
Colour
White
Construction
Plastic
Dimmable
Yes
