Et Lumiere

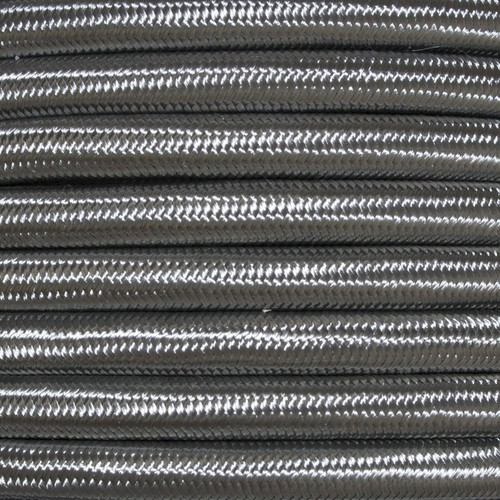

Braided Cloth Round Flex 3 Core Cable 0.75mm² Grey
Code: BRO 033 ELPHANT
In stock (125)
Braided Cloth Round Flex Cable is specifically designed for period-style restoration work on lighting and electrical appliances. It is also suitable for modern light fittings where plain PVC flex would detract from the appearance. This cable is intended for Class I (earthed) light fittings and is suitable for 230 V AC indoor mains power applications. It features a decorative textile braided finish over a PVC-insulated, flexible core.
Key Features
- Mains‑Rated for Lighting Applications
- Flexible 0.75 mm² Conductors
- PVC Insulation & Protective Sheath - Each core is individually PVC‑insulated, with an additional outer PVC sheath for mechanical protection (TI2 type PVC compound complying with EN 50363-3 standard.)
- Decorative Textile Braid - Finished with a woven fabric braid for a stylish, vintage or contemporary look
- Stranding of Conductor - Class 5 flexible electrolytic bare copper conductor conforming to BS/IEC 60228 standard.
Technical Specifications
- Cable type: HO3VV‑F
- Rated voltage: 300/300 V AC
- Number of cores: 3
- Conductor size: 0.75 mm²
- Conductor material: Flexible stranded copper (Class 5)
- Core colours: Brown / Blue / Green‑Yellow
- Core insulation: PVC (TI2 type)
- Outer sheath: PVC (TM2 type)
- Outer covering: Textile braid
- Overall diameter: approx. 5.8 mm
- Operating temperature: −20 °C to +70 °C
- Application: Indoor use
This product is priced per metre and cut to order, please order the relevant number of metres required. To buy a 100 metre reel please add 100 to the quantity. A variety of colours are available.
Please Note: Once cable is cut cannot be returned.
Basket & checkout arrive in a later phase.
- Core
- 3
- Profile
- Round
- Stranding
- 24/0.2mm
- Cross Sectional Area
- 0.75mm²
- Diameter
- 6mm
- Length
- 1m
- Colour
- Grey
- Construction
- Cloth / PVC
- IP Rating
- IP00
