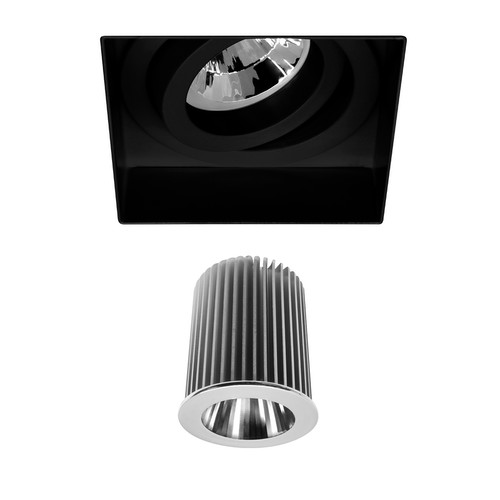

Trimless Square Adjustable Downlight Module LED Warm White (2700K) 10W (=10W) 45°

Et Lumiere

Trimless Square Adjustable Downlight Module LED Warm White (2700K) 10W (=10W) 45°

Code: FRTSQ50BLKMODWW

£60.97

In stock (26)

The Trimless Downlight is a fully adjustable downlight that is available in round or square, black or white. Using the different lampholders available you can select different light sources; Halogen, LED and Metal Halide. It is designed to be plastered into ceilings to give a seamless appearance. One of the advantages is that the downlight can be installed then plastered and painted. The Reality LED Module is an LED lamp that matches halogen light source. This is achieved with the use of a single Cree LED chip with a reflector built around it. The result is truly warm and gives that arc of light we are all used to seeing with halogen.

The Reality LED 10W Module is equivalent to a 100W GU10 halogen lamp and, like a halogen lamp, is dimmable.

Key Features

  • Replicates halogen refelctor
  • LED positioned further back for anti glare
  • Complies with October 2010 Part L regulations
  • Fully dimmable with leading edge dimmers
  • Equivalent to 100W GU10
  • Fits 50mm Downlight
  • Emergency option available
Dimmable
Yes
Cut Out
92 x 92mm (Length x Width)
Length
75mm
Minimum Ceiling Depth
90mm
Recessed Depth
20mm
Vertical Rotation
30°
Width
75mm
Energy Efficiency Rating
A
Maximum Wattage
10W
Power Factor
0.94
Voltage
240V
Cap
GU10
Colour
Black
Construction
Die-Cast Aluminium / Steel Frame
IP Rating
IP00
Beam Angle
45°
Colour Rendering Index
80
Colour Temperature
2700K Warm White
Halogen Equivalent Wattage
100W
Lumens
900 lm
Lumens Per Watt
90 lm/W

Required products

Added to your basket automatically with this product.

Trimless Square Adjustable Downlight GU10 240V Black 50W×1

Trimless Square Adjustable Downlight GU10 240V Black 50W

£16.47
Reality LED Light Engine Module 10W 900lm Dimmable 45° 2700K Warm White×1

Reality LED Light Engine Module 10W 900lm Dimmable 45° 2700K Warm White

£44.50
