Trimless Square Fire Rated Adjustable Downlight Module LED Warm White (2700K) 10W (=10W) 45°

Et Lumiere

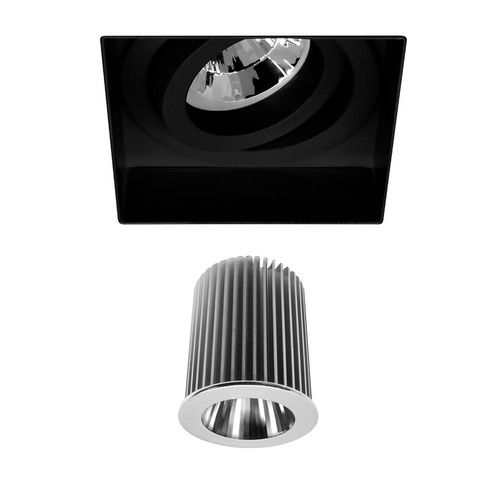

Trimless Square Fire Rated Adjustable Downlight Module LED Warm White (2700K) 10W (=10W) 45°

Code: FIREFRTSQBLKMODWW

£67.33

In stock (3)

The Trimless Fire Rated Downlight is adjustable and designed to be plastered into ceilings to give a seamless appearance.

The Trimless Fire Rated Downlight does not require a firehood and is fire rated for up to 90 minutes.

The advantage of our Trimless Fire Rated Downlight is the can is not enclosed, so it can fit any height lamp and smaller ceiling depths.
The Reality LED Module is an LED lamp that matches halogen light source. This is achieved with the use of a single Cree LED chip with a reflector built around it. The result is truly warm and gives that arc of light we are all used to seeing with halogen.

The Reality LED 10W Module is equivalent to a 100W GU10 halogen lamp and, like a halogen lamp, is dimmable.

Key Features

  • Replicates halogen refelctor
  • LED positioned further back for anti glare
  • Complies with October 2010 Part L regulations
  • Fully dimmable with leading edge dimmers
  • Equivalent to 100W GU10
  • Fits 50mm Downlight
  • Emergency option available

Basket & checkout arrive in a later phase.

Dimmable
Yes
Cut Out
92 x 92mm (Length x Width)
Minimum Ceiling Depth
90mm
Recessed Depth
20mm
Vertical Rotation
30°
Energy Efficiency Rating
A
Maximum Wattage
10W
Power Factor
0.94
Voltage
240V
Cap
GU10
Colour
Black
Construction
Die-Cast Aluminium / Steel Frame
IP Rating
IP00
Beam Angle
45°
Colour Rendering Index
80
Colour Temperature
3000K Warm White
Halogen Equivalent Wattage
100W
Lumens
900 lm
Lumens Per Watt
90 lm/W
