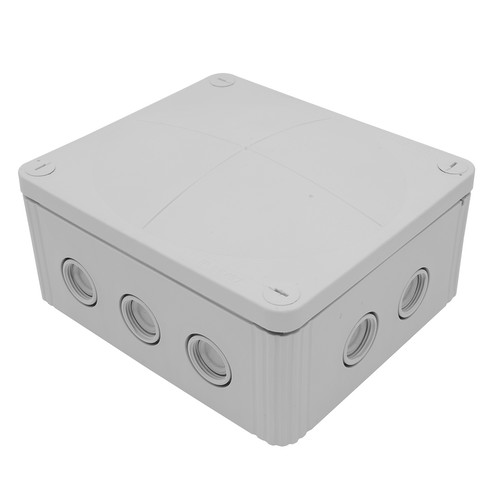

Waterproof Empty Junction Box M20 / M25 (160x140x81mm) 10 Ways Threaded Membrane & Knockouts Grey

The Waterproof Junction box COMBI 1210 multiple cable entries, 10 openings on the sides and four internal openings.

• Protection class: IP66: using the membrane entry / IP67: using the threaded entry together with ESKV cable gland
• Glow wire test: 750 °C
• Rated cross section: 10 mm²
• Fixing and Mounting: 4 internal openings outside of the sealing area
• Ø cable diameter min: 3 mm
• Ø cable diameter max: 12 mm
• External dimensions LxWxH: 160 x 140 x 81mm

Equipment:

• 10 M20 threaded membrane entries and M25 knockouts
• 4 membrane cable entries through rear
• 4 captive cover screws
