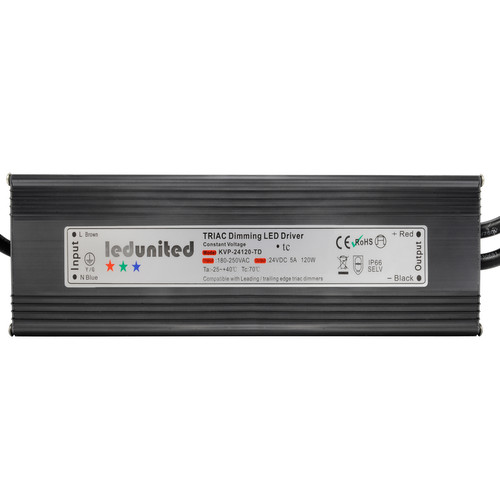

Triac LED Dimming Driver 120W 24V (Constant Voltage)
Code: DIMDRIV2 24V120W
£68.94
In stock (39)
The Triac LED Dimmer Driver is a LED power supply suitable for 24V DC LED's. This driver is used with LED Strip. This driver can be connected to any normal mains dimmer or switch. For best results use with Leading Edge Dimmers.
Specification
- Supply power input: 180~250V AC 50/60Hz
- Output wattage: 120W
- Output voltage: 24V DC
- Output current Max: 5A
- Dimming range: 5-100%
- Short circuit: Yes
- Overload protection: Yes
- 1.0kv surge protection: Yes
- Power factor: 0.90
- Efficiency: >85%
- Class: 2
- CE: Yes
- RoHS: Yes
- EMC & Safety compliance: EN61000-3-3, EN55015, EN61547
Basket & checkout arrive in a later phase.
- Height
- 46mm
- Length
- 230mm
- Width
- 70mm
- Maximum Wattage
- 120W
- Voltage
- 24V DC
- Colour
- Grey
- Dimmable
- Yes
- IP Rating
- IP66
