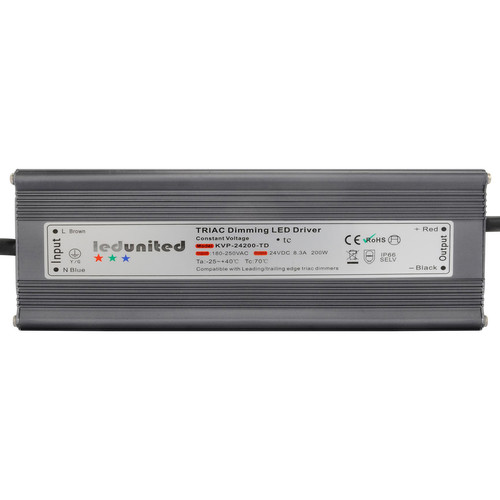

Triac LED Dimming Driver 200W 24V (Constant Voltage)
Code: DIMDRIV2 24V200W
£93.56
In stock (3)
Save up to 10% with Multi-buy
- Buy 2+ — save 4%
- Buy 3+ — save 6%
- Buy 4+ — save 8%
- Buy 5+ — save 10%
The Triac LED Dimmer Driver is a LED power supply suitable for 24V DC LED's. This driver is used with LED Strip. This driver can be connected to any normal mains dimmer or switch. For best results use with Leading Edge Dimmers.
Specification
- Supply power input: 170~265V AC 50/60Hz
- Output wattage: 200W
- Output voltage: 24V DC
- Output current Max: 8.3A
- Dimming range: 5-100%
- Short circuit: Yes
- Overload protection: Yes
- 1.0kv surge protection: Yes
- Power factor: 0.90
- Efficiency: >85%
- Class: 2
- CE: Yes
- RoHS: Yes
- EMC & Safety compliance: EN61000-3-3, EN55015, EN61547
Added to your basket.
- Height
- 47mm
- Length
- 256mm
- Width
- 78mm
- Maximum Wattage
- 200W
- Voltage
- 24V DC
- Dimmable
- Yes
- IP Rating
- IP66
