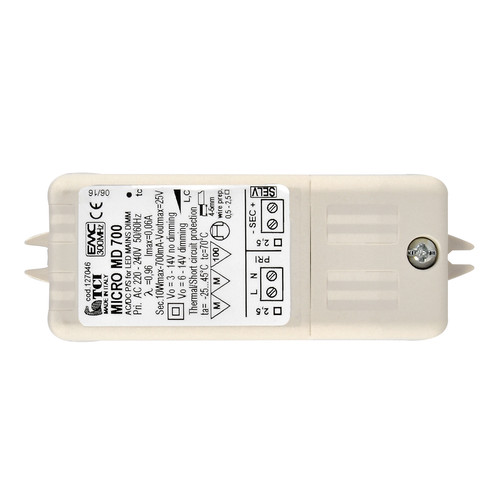

Dimming LED Driver 6W-10W 700mA (Constant Current)

The Dimming LED Driver Micro MD provides the required dim level for 700ma LED constant current lighting systems. Designed for ultimate flexibility, they allow users to easily add their own personal touch to illumination settings.

Simple easy wiring direct to any type of standard Leading or Trailing edge dimmer switch, no need for an expensive interface controller for most Home Automation Systems.

Features

• IP20 independent driver, for indoor use (MICRO MD).
• Class II protection against electric shock for direct or indirect contact (MICRO MD).
• Driver for built-in use (MICRO MD BI).
• It can be used for lighting equipment in protection class I and II (MICRO MD BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Supplied with terminal cover and cable retainer (MICRO MD).
• Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm (MICRO MD).
• Driver can be secured with slot for screws.
Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads. Thermal protection = C.5.a. Double output impedance for use in household electrical appliances.
