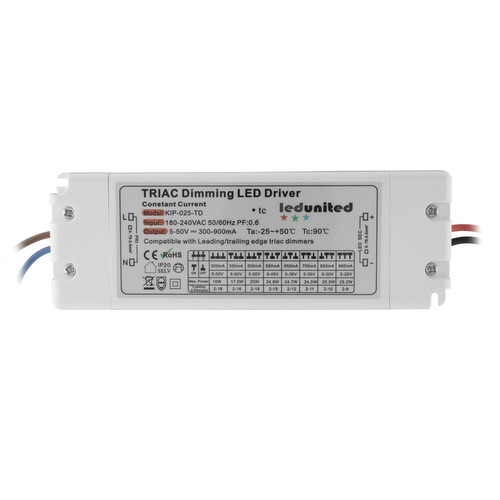

Dimmable LED Driver 1W-25W (Constant Current) 25W 300mA-900mA
Code: DCMULTI MD 25W
£37.86
In stock (212)
The DCMulti 1W-25W is a multi current power supply that can be dimmed from a regular dimmer. The DCMulti has no minimum load on the load side. There is no need to meet the minimum load when connecting most dimmers.
The DCMulti is powered by a 240V input, which means that only 2 wires are required in order to be able to dim the LED circuit. A series of dip switches gives the user the option to change the output to any of the following settings.
Available Amperages- 300,350,500,550,650,700,850,900
| Wattage | Secondary | Loading (LEDs/pcs) |
|---|---|---|
| 15W | 300mA | |
| 17.5W | 350mA | |
| 25W | 500mA | |
| 24.8W | 550mA | |
| 24.7W | 650mA | |
| 24.5W | 700mA | |
| 25.5W | 850mA | |
| 25.2W | 900mA |
Basket & checkout arrive in a later phase.
- Height
- 20mm
- Length
- 155mm
- Width
- 54mm
- Amperage
- 300mA, 350mA, 500mA, 550mA, 650mA, 700mA, 850mA, 900mA
- Maximum Wattage
- 25W
- Colour
- White
- Construction
- Plastic
- Dimmable
- Yes
