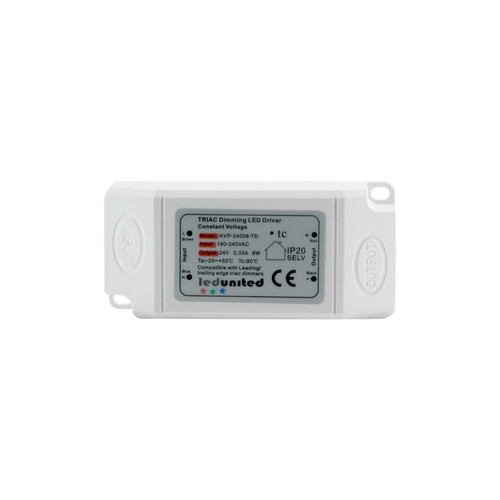

Triac LED Dimming Driver 8W 24V (Constant Voltage)
Code: DIMDRIV2 24V 8W
£14.69
In stock (163)
The Triac LED DimDrive 2 range is capable of dimming fittings with low wattage loads to a very low brightness. This driver can be connected to any normal mains dimmer or switch. For best results use with Leading Edge Dimmers.
Specification
- Supply power input: 180~250V AC 50/60Hz
- Short circuit: Yes
- Overload protection: Yes
- 1.0kv surge protection: Yes
- Efficiency: >85%
- Class: 2
- CE: Yes
- RoHS: Yes
- EMC & Safety compliance: EN61000-3-3, EN55015, EN61547
Basket & checkout arrive in a later phase.
- Depth
- 23mm
- Length
- 80mm
- Width
- 36mm
- Maximum Wattage
- 8W
- Voltage
- 24V DC
- Construction
- Plastic
- Dimmable
- Yes
- IP Rating
- IP20
