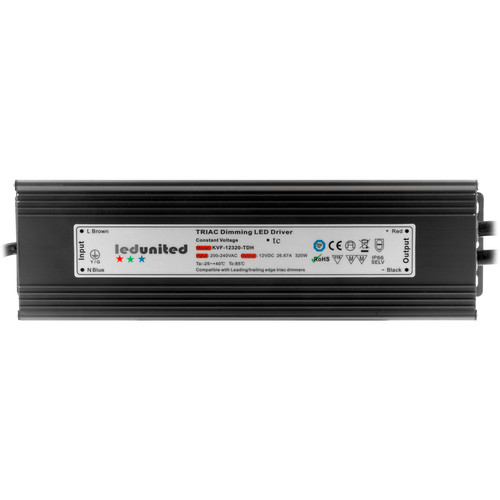

Triac LED Dimming Driver 320W 12V (Constant Voltage)
Code: DIMDRIV2 12V320W
£141.39
Out of stock
The Triac LED Dimmer Driver is a LED power supply suitable for 12V DC LED's. This driver is used with LED Strip. This driver can be connected to any normal mains dimmer or switch. For best results use with Leading Edge Dimmers.
Please note: 150W on each cable. If load exceeds more than 150W then you must wire the two output cables in parallel.
Specification
- Supply power input: 180~250V AC 50/60Hz
- Output wattage: 320W
- Output voltage: 12V DC
- Output current Max: 26.67A
- Dimming range: 0-100%
- Short circuit: Yes
- Overload protection: Yes
- 1.0kv surge protection: Yes
- Power factor: 0.90
- Efficiency: >85%
- Class: 2
- CE: Yes
- RoHS: Yes
- EMC & Safety compliance: EN61000-3-3, EN55015, EN61547
Basket & checkout arrive in a later phase.
- Height
- 47mm
- Length
- 276mm
- Width
- 78mm
- Maximum Wattage
- 320W
- Voltage
- 12V DC
- Dimmable
- Yes
- IP Rating
- IP66
