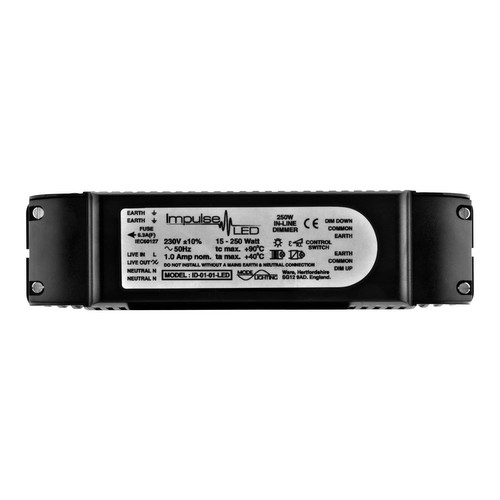

Impulse LED Leading Edge Dimmer 240V 250W Black
Code: ID0101 LED
£138.00
In stock (2)
The Impulse LED is an LED friendly version of our popular retrofit Impulse dimmer module. Impulse dimmers can be operated by any momentary or centre retractive type switch.
A single switch can be used to provide On, Off, Raise, Lower operation.
A centre retractive switch can be used for On/Raise and Off/Lower control.
The Impulse LED can also be used for multi-position, multi-gang dimming control and can be programmed to set minimum and maximum light levels which provides the ability to fine tune the dimming range to suit the wide variety of LED lamps available.
Key Features:
- 250W In-Line Dimmer
- Set both minimum and maximum light levels
- Suitable for Leading Edge Dimmable LED loads
- Hard-fired Dimming, Neutral Required
- Low Voltage Switch Plate Wiring
- Controlled by any Momentary Switch
- Complies with EC EMC, LV and RoHS Directives
- On /Off, Dim Up / Dim Down Functions
- Multi-Position Dimming Control
- Multi-Gang Switch Plate Capabilities
- Fully Isolated Switch Plate Input
- Fully Protected Fused Output
Basket & checkout arrive in a later phase.
- Depth
- 57mm
- Height
- 42mm
- Width
- 22mm
- Maximum Wattage
- 250W
- Colour
- Black
- Construction
- Polycarbonate
