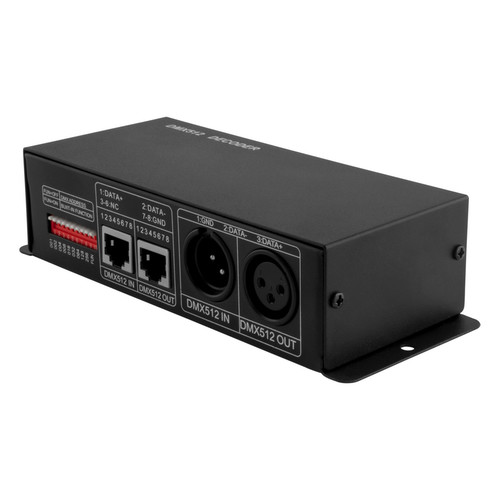

DMX512 4 Channel Decoder 12V / 24V 384W
Code: LEDDMX RGBW CONT
£43.50
In stock (5)
The DMX512 4 Channel Decoder receives standard DMX-512 digital control signal transformed it into PWM signal to adjust to LED. When using a 12V power supply this product is 192W and when using a 24V power supply this product is 384W
The DMX512 can be used as the synchronous controller to controlled the LED alone, it can realize the synchronous effects. It is easy to use, each DMX common controller occupied 4 DMX address, DMX address can be set through dip switch.
Input voltage: DC12-24V. 4 output channels, 4 amps per channel(each colour).
Basket & checkout arrive in a later phase.
- Operating Temperature
- -20-60 °C
- Height
- 41mm
- Length
- 166mm
- Width
- 67mm
- Amperage
- 16A
- Input Voltage
- 12V-24V
- Maximum Wattage
- 384W (4 x 96W)
- Voltage
- 24V
