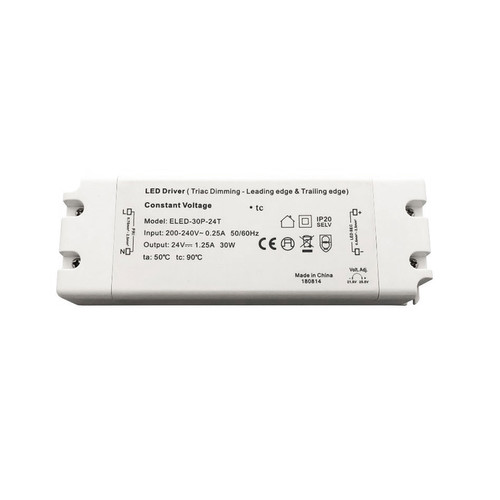

Traic Dimmable LED Driver 30W 24V (Constant Voltage)
Code: ELED-30P-24T
£31.90
In stock (25)
Ecopac 30W 24V leading and trailing edge dimmable constant voltage LED Driver (ELED-30P-24T)
This 30W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage and is TRIAC dimmable suitable for both leading edge dimmers and trailing edge dimmers.
Features
- Constant Voltage Design 24V Output
- Dimmable using leading edge & trailing edge Triac Dimmers
- PWM Output
- Output Current 1.25A
- Protections: Short circuit/ Over loading/ Over current/ Over temperature
- Efficiency up to 85%
- Cooling by free air convection
- IP20 design
- Suitable for LED lighting and moving sign applications
Basket & checkout arrive in a later phase.
- Height
- 54mm
- Length
- 155mm
- Width
- 20mm
- Maximum Wattage
- 30W
- Voltage
- 24V
- Dimmable
- Yes
- IP Rating
- IP20
- Weight
- 210g
