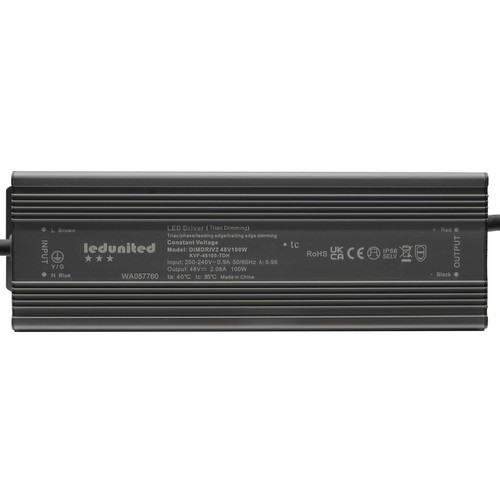

Triac LED Dimming Driver 100W 48V (Constant Voltage)
Code: DIMDRIV2 48V100W
£104.70
In stock (61)
The Triac LED Dimmer Driver is a LED power supply suitable for 48V DC LED's. This driver can be connected to any normal mains dimmer or switch. For best results use with Leading Edge Dimmers.
Specification
- Supply power input: 200~240V 0.9A 50/60Hz
- Output wattage: 100W
- Output voltage: 48V
- Output current Max: 2.08A
- Dimming range: 10-100% TRIAC leading edge and trailing edge
- Short circuit: Yes
- Overload protection: Yes
- 1.0kv surge protection: Yes
- Power factor: 0.95
- Efficiency: >84%
- Class: 2
- CE: Yes
- RoHS: Yes
- EMC & Safety compliance: EN61000-3-3, EN55015, EN61547
Basket & checkout arrive in a later phase.
- Height
- 75mm
- Length
- 230mm
- Width
- 47mm
- Maximum Wattage
- 100W
- Power Factor
- λ = 0.95
- Voltage
- 48V DC
- Dimmable
- Yes
- IP Rating
- IP66
- Weight
- 1.3kg
