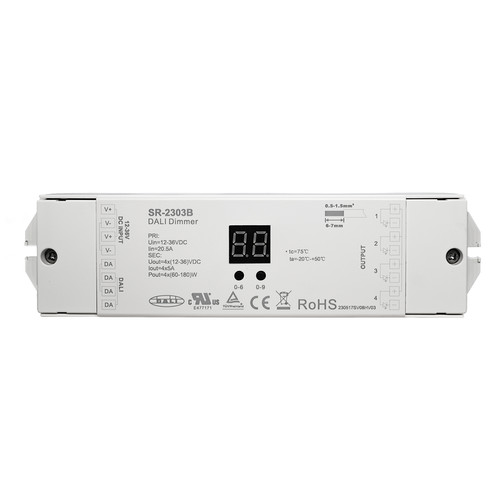

DALI-1 Dimmable LED Interface RGBW 4 Channels (Constant Voltage) 240-720W 12-36V
Code: SR-2303B
£61.38
In stock (35)
The DALI Dimmer SR-2303B is a Constant Voltage LED dimming controller with 4 channel 5A per output, which complies with standard DALI protocol with 4 DALI addresses to control 4 channel separately. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 4 DALI addresses are available for 4 channel to work separately. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.
Key Features
- Match all DALI system in the market
- Manual /automatically DALI address setting: DALI address can be manually assigned and shown in numeric digital display or automatic assigned by master controller
- Constant Voltage DALI LED dimmer with 4 channel, 5A per channel output available in 12VDC, 24VDC and 36VDC output
- 4 DALI addresses, 4 channels works separately.
- 0%-100% dimming range via logarithm characteristic, perfect for human's vision
- To work with power repeater to expand output power unlimitedly.
- Waterproof grade:IP20
Safety & Warnings:
- DO NOT install with power applied to device
- DO NOT expose the device to moisture
Basket & checkout arrive in a later phase.
- Operating Temperature
- -20°C +50°C
- Height
- 22mm
- Length
- 178mm
- Width
- 46mm
- Amperage
- 20A
- Maximum Wattage
- 720W (4 x 180W)
- Voltage
- 12-36V DC
- Colour
- White
- Construction
- Plastic
- Dimmable
- Yes
- IP Rating
- IP20
