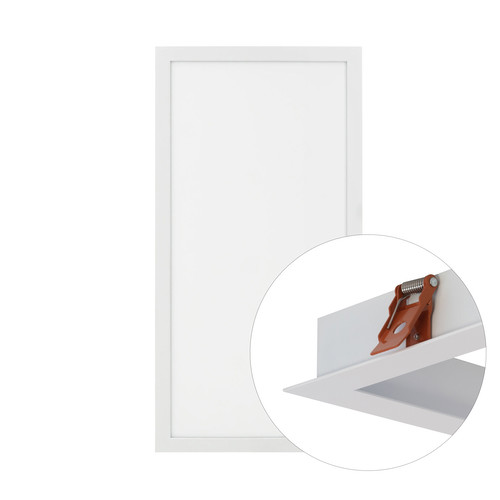

LED Panel 24V 600 x 300 mm Recessed Frame Kit 3000K Warm White 20W

Et Lumiere

LED Panel 24V 600 x 300 mm Recessed Frame Kit 3000K Warm White 20W

Code: LEDPANEL20WW REC

£46.62£58.27 Save 20%

In stock (10)

The LED Panel Light Recessed Frame range features the latest in LED technology. The panels are suitable for commercial and domestic applications, included with the LED Panel is a surfaced mounting frame for ceilings in which panels can't be recessed into the ceiling. These panels are ideally suited for office lighting and for meeting rooms and corridors.

Key Features

  • IP44 rated
  • LED type: SMD2835 160lm/W (110lm/W in the actual fitting)
  • Light emitting angle: 120°
  • No Flicker
  • LM80
  • CRI80
  • UGR21
  • Diffuser plate with light transmittance of 98% (1.5mm thickness)
  • Different installations and applications possible

    • LED Recessed Frame Installation

    The LED Recessed Frame has actual dimensions of 632mm x 332mm and it is suitable to fit 595x295 LED Panels. For installation, you need to cut a 622mm x 322mm hole into the plasterboard to fit the frame securely. Alternatively, you can opt for a 608mm x 308mm cut out in the ceiling. However, you’ll need to cut more precisely around where the clips are to ensure the frame fits securely.

    Please Note: Ensure there are no joists above the recessed frame, as this will prevent the panel from being properly installed.

    LED Type
    SMD2835
    Operating Temperature
    -20°C ~ +40°C
    Cut Out
    610 x 310mm (Length x Width)
    Length
    630mm
    Recessed Depth
    38mm
    Width
    330mm
    Maximum Wattage
    20W
    Voltage
    24V DC
    Colour
    White
    IP Rating
    IP44
    Beam Angle
    120°
    Colour Rendering Index
    80
    Colour Temperature
    3000K Warm White
    Lumens
    2200 lm
    Lumens Per Watt
    110 lm/W

    Required products

    Added to your basket automatically with this product.

    LED Panel 24V 600 x 300 mm 3000K Warm White 20W×1

    LED Panel 24V 600 x 300 mm 3000K Warm White 20W

    £27.71

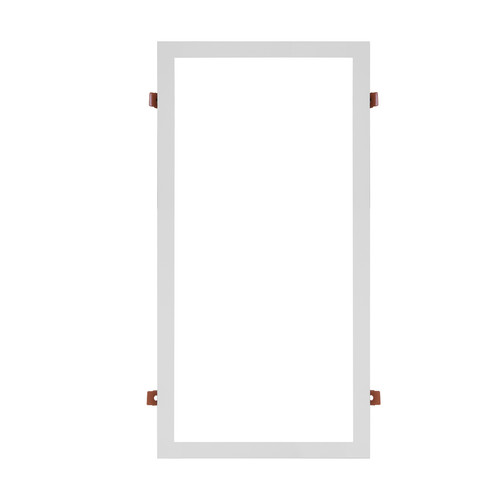

    LED Panel Recessed Mounting Frame White 600 x 300 mm×1

    LED Panel Recessed Mounting Frame White 600 x 300 mm

    £18.90
