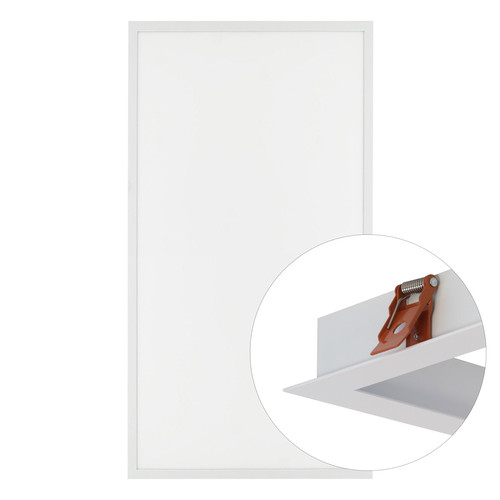

LED Panel 24V 1200 x 600 mm Recessed Frame Kit 4000K Cool White 60W
Code: LEDPANEL 60CW REC
£111.57£139.46
Sale
In stock (29)
The LED Panel Light Recessed Frame range features the latest in LED technology. The panels are suitable for commercial and domestic applications, included with the LED Panel is a surfaced mounting frame for ceilings in which panels can't be recessed into the ceiling. These panels are ideally suited for office lighting and for meeting rooms and corridors.
IP44 rated
LED type: SMD2835 160lm/W (110lm/W in the actual fitting)
Light emitting angle: 120°
No Flicker
LM80
CRI80
UGR21
Diffuser plate with light transmittance of 98% (1.5mm thickness)
Different installations and applications possible
Key Features
- LED Recessed Frame Installation
The LED Recessed Frame has actual dimensions of 1232mm x 632mm and it is suitable to fit 1195x595 LED Panels. For installation, you need to cut a 1222mm x 622mm hole into the plasterboard to fit the frame securely. Alternatively, you can opt for a 1208mm x 608mm cut out in the ceiling. However, you’ll need to cut more precisely around where the clips are to ensure the frame fits securely.
Please Note: Ensure there are no joists above the recessed frame, as this will prevent the panel from being properly installed.
Basket & checkout arrive in a later phase.
- LED Type
- SMD2835
- Operating Temperature
- -20°C ~ +40°C
- Cut Out
- 1210 x 610mm (Length x Width)
- Length
- 1230mm
- Recessed Depth
- 38mm
- Width
- 630mm
- Maximum Wattage
- 60W
- Voltage
- 24V DC
- Colour
- White
- Construction
- Aluminium
- Dimmable
- Yes
- IP Rating
- IP44
- Beam Angle
- 120°
- Colour Rendering Index
- 80
- Colour Temperature
- 4000K Cool White
- Lumens
- 6600 lm
- Lumens Per Watt
- 110 lm/W
