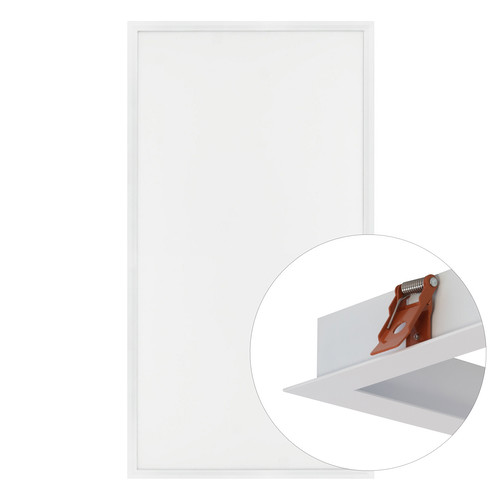

LED Panel 24V 1200 x 600 mm Recessed Frame Kit RGB + 4000K Cool White 60W

Et Lumiere

LED Panel 24V 1200 x 600 mm Recessed Frame Kit RGB + 4000K Cool White 60W

Code: LEDPANEL 60RGBC REC

£145.60£182.00 Sale

Out of stock

The LED Panel Light Recessed Frame range features the latest in LED technology. The panels are suitable for commercial and domestic applications, included with the LED Panel is a surfaced mounting frame for ceilings in which panels can't be recessed into the ceiling. These panels are ideally suited for office lighting and for meeting rooms and corridors.

The RGBC panels are colour change and white, giving the ability to choose either white or any colour or hue. This is ideal for creating different moods and ambiences in a space.

Key Features

  • IP44 rated
  • LED type: SMD2835 160lm/W (110lm/W in the actual fitting)
  • Light emitting angle: 120°
  • No Flicker
  • LM80
  • CRI80
  • UGR21
  • Diffuser plate with light transmittance of 98% (1.5mm thickness)
  • Different installations and applications possible

    • LED Recessed Frame Installation

    The LED Recessed Frame has actual dimensions of 1232mm x 632mm and it is suitable to fit 1195x595 LED Panels. For installation, you need to cut a 1222mm x 622mm hole into the plasterboard to fit the frame securely. Alternatively, you can opt for a 1208mm x 608mm cut out in the ceiling. However, you’ll need to cut more precisely around where the clips are to ensure the frame fits securely.

    Please Note: Ensure there are no joists above the recessed frame, as this will prevent the panel from being properly installed.

    Please note, we recommend add a driver double the wattage for the RGB and RGBW Panels

    Basket & checkout arrive in a later phase.

    LED Type
    SMD2835
    Operating Temperature
    -20°C ~ +40°C
    Cut Out
    1210 x 610mm (Length x Width)
    Length
    1230mm
    Recessed Depth
    38mm
    Width
    630mm
    Maximum Wattage
    60W
    Voltage
    24V DC
    Colour
    White
    Construction
    Aluminium
    Dimmable
    Yes
    IP Rating
    IP44
    Beam Angle
    120°
    Colour Rendering Index
    80
    Colour Temperature
    4000K Cool White
    Lumens
    6000 lm
    Lumens Per Watt
    100 lm/W
