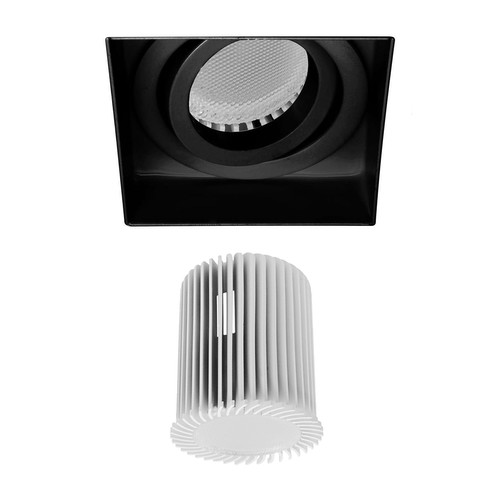

Trimless Square Downlight RGBW LED Module 8.5W RGB+3000K Warm White Black

Et Lumiere

Trimless Square Downlight RGBW LED Module 8.5W RGB+3000K Warm White Black

Code: TRIMSB RGB/W

£56.47

In stock (9)

The Trimless Square RGBW is an adjustable downlighter with a plug and play 46° RGB +3000 K Warm White LED Module.

The Trimless Downlight is a fully adjustable downlight that is available in round or square, black or white. It is designed to be plastered into ceilings to give a seamless appearance. One of the advantages is that the downlight can be installed then plastered and painted.

Wireless Switches and Remotes

A 7 button wireless wall switch or remote is needed to control the LEDs. Using either the wall switch or remote allows the user to:

  • Select one of the 8 preset colours (Red, Green, Blue, Orange, Cyan, Magenta, Yellow
  • Start a smooth colour cycle
  • Reverse the colour cycle
  • Choose between 3 different colour cycle speeds
  • Pause on one of the 1000 different shades of colours available
  • Re-program the 8 preset colours with 8 colours of your own choice

Basket & checkout arrive in a later phase.

Controller Input
24V
Driver Input
240V
Driver Output
24V
Cut Out
90 x 90mm (Length x Width)
Grid Length
125mm
Grid Width
125mm
Length
75mm
Minimum Ceiling Depth
85mm
Vertical Rotation
40°
Width
75mm
Maximum Wattage
8.5W
Voltage
24V
Colour
Black
Construction
Die-Cast Aluminium / Steel Frame
IP Rating
IP20
Colour Temperature
3000K Warm White
