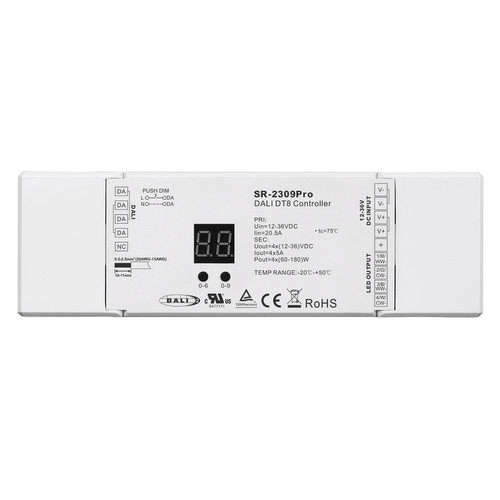

DALI-2 DT8 Dimmable LED Interface RGBW 4 Channels (Constant Voltage) 720W (12–36V) - 480W (48V) 12-48V
Code: SR-2309PRO RGB/W
In stock (7)
SR-2309PRO is a 6 in 1 professional multi-functional enabled DALI DT8 control gear which is compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011. It is DALI DT8 device with built-in DALI-2 interface. Multi addresses are enabled in this control gear, which means it integrates multi DALI DT8 devices in one control gear.
This control gear is designed with 4 channels PWM output, which enables to control tunable white LEDs, RGB LEDs, RGBW LEDs, RGB+tunable white LEDs depending on the device type configured. One control gear is enough to meet all requirements. This control gear is innovative to be compatible with universal DALI systems, whatever DALI DT8 device types a DALI system support, this control gear supported all DALI DT8 device types.
It can be set as single address type or multi-addresses type. The combination of device types can be configured with the buttons and display, and total 6 combinations available: Tc, RGBWAF, XY, 2*Tc, XY+W (DT6), DT6.
This controller delivers powerful multi‑channel output, providing 4 independent channels rated at 60–180 W each (maximum total output 720 W) when operating at 12–36 V, or 120 W per channel (maximum total output 480 W) at 48 V, with a wide 12–48 V DC input voltage range and output currents of 4×5 A (12–36 V) or 4×2.5 A (48 V), ensuring compatibility with a broad range of LED loads
| Part No. | Input Voltage | Output Current | Output Power | Output Type |
|---|---|---|---|---|
| SR-2309PRO | 12 VDC | 4×5A | 4×60W | Constant Voltage |
| 24 VDC | 4×5A | 4×120W | ||
| 36 VDC | 4×5A | 4×180W | ||
| 48 VDC | 4×2.5A | 4×120W |
| Category | LED Strip Type | Mode (DT8) | DALI Addresses | What It Controls | Technical Details |
|---|---|---|---|---|---|
| RGB Control | RGB | DT8 RGB (XY) | 1 | RGB colours via XY | 3‑channel RGB using CH1–CH3 (DT8 XY). |
| RGBW Control | RGBW | DT8 RGBW (RGBWAF) | 1 | RGB + White channel | 4‑channel RGBW using CH1–CH4 (DT8 RGBWAF). |
| RGB + White | RGBW | DT8 RGB (XY) + DT6 White | 2 | RGB + independent W dimming | Address 1 = XY, Address 2 = DT6 (consecutive). |
| CCT (Single Group) | CCT (WW+CW) | DT8 CCT (Tc) | 1 | CCT temperature + brightness | DT8 Tc warm/cool control on paired channels. |
| CCT (Two Groups) | Dual CCT | Dual DT8 CCT (2×Tc) | 2 | Two independent CCT groups | Appears as two Tc devices to the DALI master. |
| Single‑Colour | Single colour LED | DT6 Dimming | 1 | Brightness only | DT6 dimming; grouped output. |
| Channel Setting | RGB / RGBW | 3A / 4A | — | Select 3‑ch or 4‑ch | Set via onboard buttons. |
Key Features
- Built-in DALI-2 interface, DALI DT8 device
- Colour Management: DT8 drivers handle colour mixing directly, enabling seamless transitions and precise colour tuning without managing multiple addresses for each colour channel.
- 4 universal device types in 1: primary N, Tc, XY coordinate, RGBW, can be set by the buttons
- DALI DT8 device to control RGBW outputs or tunable white outputs via a single DALI address
- Only 1 address required to control 4 outputs separately under primary N mode
- 4 Channels constant voltage
- Control of four PWM outputs via DALI device type 8
- Colour control as defined in the DALI specification device type 8
- Colour type primary N, Tc, XY coordinate, RGBW can be set by manual set buttons
- Supports DT8 device commands, compatible with DALI masters that support DT8 commands
- Configuration via DALI master
- Numeric digital display for setting DALI address manually
- Compatible with universal AC push switch
Basket & checkout arrive in a later phase.
- Operating Temperature
- -20°C +50°C
- Height
- 28mm
- Length
- 170mm
- Width
- 53mm
- Amperage
- 5A
- Maximum Wattage
- 720W (4 x 180W)
- Voltage
- 12-48V DC
- Colour
- White
- Construction
- Plastic
- Dimmable
- Yes
