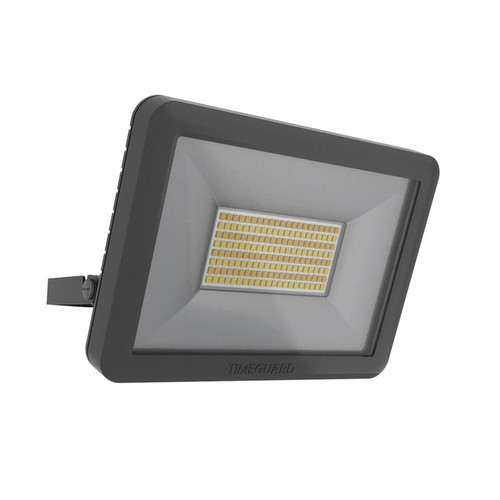

LEDPRO PIR Outdoor Garden CCT Floodlight IP65 240V Black 30W Selectable CCT (3000K/4000K/5000K)

Timeguard

LEDPRO PIR Outdoor Garden CCT Floodlight IP65 240V Black 30W Selectable CCT (3000K/4000K/5000K)

Code: LEDPRO31B

£29.00

In stock (1)

The CCT3 LEDPRO Floodlight is designed for high‑performance illumination in residential and commercial environments, delivering powerful, adjustable output with long‑term reliability.

Up to 3105 lumens depending on the selected colour temperature, this floodlight uses a wide 114° beam angle to achieve broad, uniform coverage ideal for driveways, building facades, gardens, service yards, and security zones.

Its CCT‑switchable LED module allows precise colour selection between 3000K, 4000K, and 5000K, enabling tailored lighting to match application needs — from warm ambient lighting to high‑clarity security illumination. Built with a die‑cast aluminium housing, toughened IK07‑rated glass diffuser, and IP65 environmental protection, the unit is engineered to withstand dust ingress, rain, and low‑pressure jets, ensuring durability in harsh outdoor conditions.

Designed with an installer‑friendly approach, the floodlight integrates fully rewireable push‑fit loop‑in/loop‑out terminals and a slave link terminal for multi‑floodlight setups.

See linked items for optional Plug & Play PIR module allow scalable automation, including motion detection, dusk‑to‑dawn operation, and manual override.

Key Features

  • 30W LED output for high‑efficiency lighting.
  • Colour Temperature: Switchable 3000K / 4000K / 5000K (CCT3)
  • Luminous Flux: 2835 lm (3000K) / 3105 lm (4000K) / 2970 lm (5000K)
  • Beam Angle: Wide 114° beam for large‑area wash lighting
  • IP65 dust/water protection
  • IK07 impact‑resistant toughened glass diffuser
  • Fully rewireable push‑fit terminals (loop‑in/loop‑out)
  • Control Compatibility: Optional Plug & Play PIR sensor (with manual override) and photocell for automated control.
  • Dimension: 145mm (H) x 200 (W) x 125 (D)
  • Dual Plug and Play PIR (Manual Override) and Photocell option with linkable control (See linked items)
  • Includes Slave terminal for linking extra lights to a single sensor
  • Includes Adjustable mounting bracket and fixings included foe ease of installation
  • Includes 2 x IP65 Compression glands included for loop in-out wiring

Basket & checkout arrive in a later phase.

Depth
125mm
Height
145mm
Width
200mm
Energy Efficiency Rating
D
Maximum Wattage
30W
Voltage
240V
Colour
Black
Dimmable
No
IP Rating
IP65
Weight
690g
Beam Angle
114°
Colour Rendering Index
80
Lumens
120 lm
Lumens Per Watt
4 lm/W
