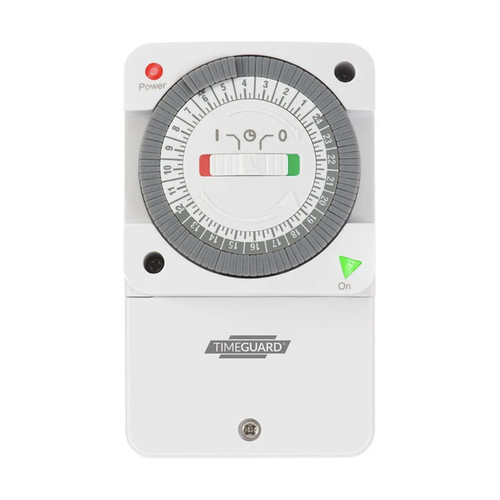

24 Hour Slimline General Purpose Timeswitch

The Timeguard NTT05 24‑Hour Slimline Timeswitch offers simple, reliable daily control with 96 quick‑set segments for up to 48 ON/OFF programmes, ideal for lighting, heating, and appliances. Featuring clear LED status indicators, a user‑friendly traffic‑light mode selector, voltage‑free contacts, and a slim, surface‑mounted design, it delivers dependable, flexible scheduling for homes and businesses.

Key Features

• 96 Quick-Set Segments for up to 48 ON/48 OFF Programmes Per 24 Hrs
• Red LED ‘Mains ON’ & Green LED ‘Output’
• ‘Traffic Light’ Slide Switch for Easy ON (green), Auto (green & red) and OFF (red) Mode Indication
• Switches ON & OFF At Preset Times
• Captive Segment Dial
• Permanent ON/OFF Control
• Voltage Free Contacts

Technical Specification

• Setting Type: Segment
• Program Modes: 24‑Hour
• Voltage‑Free Contacts: Normally Open, Normally Closed (Changeover)
• Mounting Hole Centres: 90mm
• Standby Consumption: <1.43W
• Number of Channels: 1
• Switch Rating: 16A resistive; 750W halogen/fluorescent; 100W CFL; 100W LED
• Shortest Switching Time: 15 minutes (1 segment = 15 min)
• Programmable Slots: 48 ON / 48 OFF (96 segments)
• Permanent ON Facility: Yes (Slider Switch)
• Cable Capacity: 1.5–2.5mm² flexible cable
• Cable Entry: Back entry + bottom entry (knockouts)
