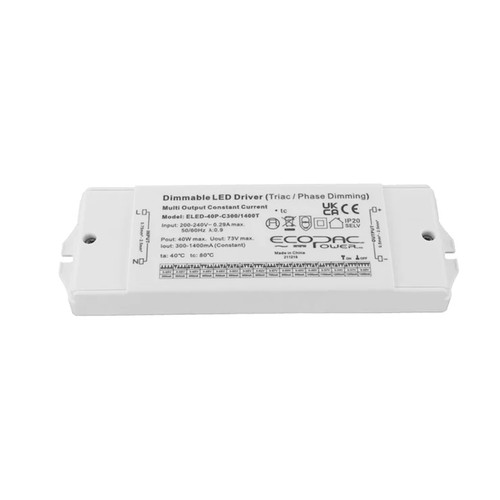

Ecopac
Triac Dimmable LED Driver (Constant Current) 19.5W-40W, 300mA-1400mA
Code: ELED40PC3001400T
£43.00
In stock (3)
The ELED‑40P‑C300‑1400T series is a range of mains‑dimmable, constant‑current LED drivers designed for indoor commercial and architectural lighting where traditional TRIAC / phase‑cut dimming is required.
- Constant current output with dip‑switch selectable current levels
- TRIAC / phase‑cut dimming (Works with leading‑edge and trailing‑edge dimmers)
- Wide selectable current range: 300 mA to 1400 mA
- Power range: approx. 19.5 W to 40 W (depending on current setting)
- Flicker‑free dimming with strong dimmer compatibility
- Active PFC (power factor correction)
- Compact plastic housing, IP20 (indoor use)
- Built‑in protections: short circuit & overload
| Selectable Output Current | Output Voltage Range | Max Output Power |
|---|---|---|
| 300 mA | 3 – 65 V DC | 19.5 W |
| 350 mA | 3 – 65 V DC | 22.8 W |
| 400 mA | 3 – 65 V DC | 26.0 W |
| 450 mA | 3 – 65 V DC | 29.3 W |
| 500 mA | 3 – 65 V DC | 32.5 W |
| 550 mA | 3 – 65 V DC | 32.8 W |
| 600 mA | 3 – 65 V DC | 39.0 W |
| 650 mA | 3 – 62 V DC | 40.0 W |
| 700 mA | 3 – 57 V DC | 40.0 W |
| 800 mA | 3 – 50 V DC | 40.0 W |
| 900 mA | 3 – 45 V DC | 40.0 W |
| 1000 mA | 3 – 40 V DC | 40.0 W |
| 1100 mA | 3 – 37 V DC | 40.0 W |
| 1200 mA | 3 – 34 V DC | 40.0 W |
| 1300 mA | 3 – 31 V DC | 40.0 W |
| 1400 mA | 3 – 29 V DC | 40.0 W |
Basket & checkout arrive in a later phase.
- Height
- 20mm
- Length
- 171.5mm
- Width
- 54mm
- Amperage
- 300mA, 1400mA
- Maximum Wattage
- 40W
- Minimum Wattage
- 19.5W
