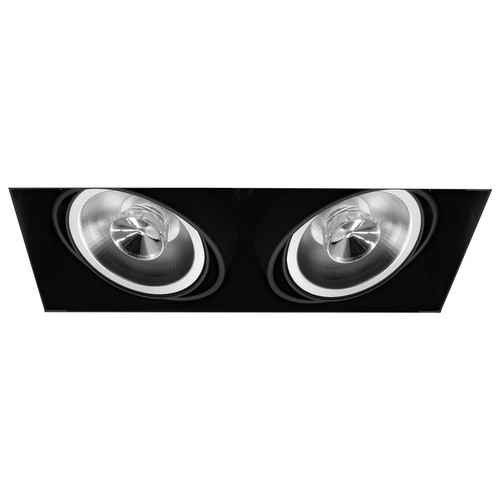

Grid Trimless Double AR70 Downlight 12V 2 x 50W Black

The Grid Trimless Double AR70 is an adjustable downlighter that can take up to two 50W lamps, which can be angled in any direction.

This product comes with a mounting ring which is designed to be fitted into the ceiling and plastered in before the light fixture is put into place. The downlighter fits into the hole in the ceiling and will rest on top of the mounting bracket. Once the light is fitted there will be no trim unlike the similar Grid Range of products.

This product comes with a 15mm metal frame that is to be used with a 12.5mm plasterboard. If you have a double plaster board or need a larger frame please purchase the 28mm frame.

This version takes two low voltage AR70 B15d 50W maximum lamps (available separately). Each lamp has its own terminal, allowing you to wire all lamps to one transformer or for each lamp to have its own transformer. Using a separate transformer for each lamp gives better flexibility as each individual lamp can be dimmed or switched as required. If you wish to see detailed installation instructions, please click on the technical tab.
