Et Lumiere

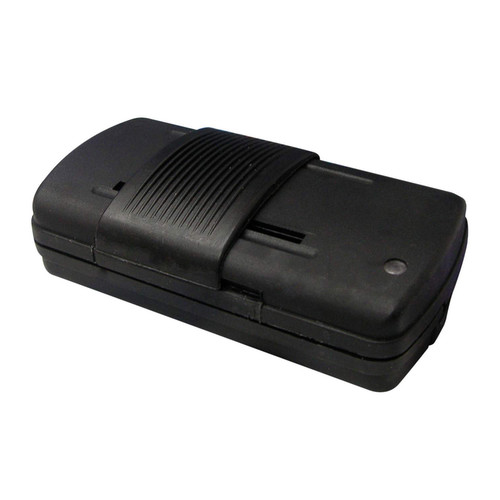

Floor/Table Light Dimmer 12V Black 60W
Code: RL7317
£36.96
In stock (5)
The 12V Floor or Table light dimmer has an electronic transformer incorporated. It has a 240V mains input and a 12V 60W output. This means you are able to use low voltage halogen lamps.
General Characteristics
Amperometric protection
Protection against transitory surge voltages
Self-resetting protection against short circuit and overload
Soft-Start mechanism
Radio frequency interference fitter conforming to EN55015 AM1
Installation Instruction
Use electronic converter exclusively with resistive loads and class 2 and 3 lighting appliances
Observe plate values shown
Place electronic converter away from heat sources
Tighten terminal screw accurately
Maximum length of connecting cable not more than 2m
Remove upper plastic cover
Cable model. use cable type H03VV-F or H03VV-H2F.
Block cable with cable clamps
Push spindle of potentiometer to limit stop, replace upper plastic cover after having pushed slider also to limit stop
Close plastic cover with screws
Please note: On the 240V input side the live and neutral cables can be wired to either terminal. On the 12V output side the positive and negative can also be wired to either terminal.
Basket & checkout arrive in a later phase.
- Height
- 30mm
- Length
- 110mm
- Width
- 60mm
- Maximum Wattage
- 60W
- Minimum Wattage
- 20W
- Voltage
- 12V
- Colour
- Black
- Construction
- Plastic
