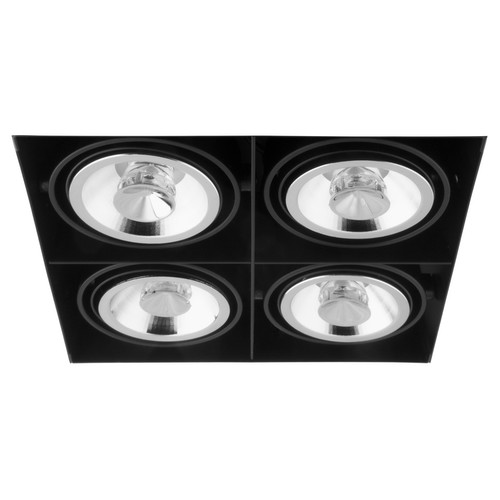

Grid Trimless Quadruple AR70 Downlight 12V 4 x 50W Black
Code: FRT400 QR70 BLK
In stock (16)
This product comes with a mounting ring which is designed to be fitted into the ceiling and plastered in before the light fixture is put into place. The downlighter fits into the hole in the ceiling and will rest on top of the mounting bracket. Once the light is fitted there will be no trim unlike the similar Grid Range of products.
This version takes four low voltage AR70 B15d 50W maximum lamps (available separately). Each lamp has its own terminal, allowing you to wire all lamps to one transformer or for each lamp to have its own transformer. Using a separate transformer for each lamp gives better flexibility as each individual lamp can be dimmed or switched as required. If you wish to see detailed installation instructions, please click on the technical tab.
Basket & checkout arrive in a later phase.
- Cut Out
- 213 x 213mm (Length x Width)
- Depth
- 115mm
- Horizontal Rotation
- 45°
- Length
- 205mm
- Vertical Rotation
- 45°
- Width
- 205mm
- Maximum Wattage
- 200W (4 x 50W)
- Voltage
- 12V
- Cap
- SBC / AR70
- Colour
- Black
- Construction
- Steel
- Dimmable
- Yes
- IP Rating
- IP20
