Timeguard

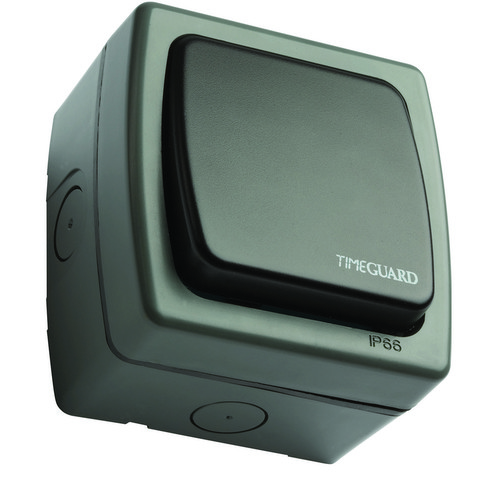

Weatherproof Vision Single Gang 2-Way Outdoor Switch (SP) 1 Gang Grey
Code: TGVL01
£17.54
Out of stock
The Weatherproof Vision Single Gang 2-Way Switch (SP) is manufactured from tough, durable thermoplastic. It is intended for use in an outdoor environment, or one in which the protection provided by the range is required. It is rated IP66, for protection against water and dust. It will need to be fitted with waterproof cable or conduit entries to maintain their IP rating once installed.
For more information, please click on the downloads tab.
Features
- 10 amp (fluorescent rated) 1 gang SP 2-way
- 4 × 20mm cable entries
- Earth terminal and loop terminal in back box
- Impact resistant housing
Specification
- Operating Temperature: 0°C to 40°C
- Type: 2 Way
- Rocker Switch Poles: 1
- Rocker Switch Rating: 10A
- IP Rating: IP66
- Fully Complies with: BS EN 60669 (isolating switches) and BS 3676 (switches)
Basket & checkout arrive in a later phase.
- Compliance
- BS 60669
- Operating Temperature
- 0°C ~ 40°C
- Depth
- 66mm
- Height
- 96mm
- Width
- 92mm
- Voltage
- 240V
- Colour
- Grey
- Construction
- Thermoplastic
- IP Rating
- IP66
