Timeguard

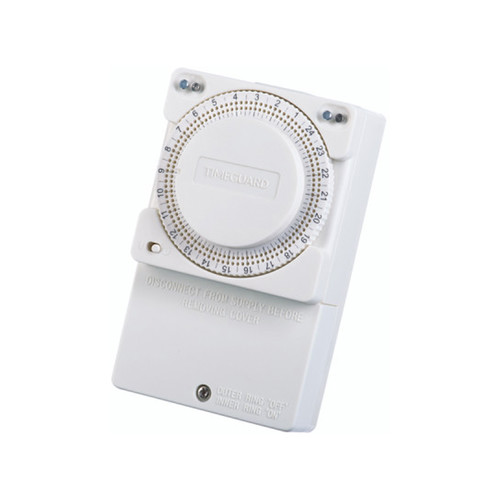

24 Hour Immersion Heater Time Controller White
Code: TS900N.4
£39.80
In stock (7)
The 24 Hour Immersion Heater Time Controller is specially designed for installation with both new and existing immersion heater systems. Up to 24 ON & OFF programs (additional pins required) plus self-cancelling override for instant ON/OFF switching.
Features
- 13A (3kW) loading
- For total control of your hot water
- Switches ON and OFF at preset times
- Easy to use setting pins
- 30 minute minimum switching interval which can be increased in 15 minute steps
- Manual override until next programme change
- Integral thermal fuse for extra protection
- Bottom or rear entry for cable
Specification
- Operating Temperature: 0°C to 50°C
- Operating Voltage: 240V AC
- Timer Mode: 24 Hour
- Setting Type: Pin
- Switching Rating: Filament lamps – 400W, Fluorescent – 100W, Resistive – 13A (3kW), Inductive – 4A
- Conforms to Directives: 73/23/EEC & 89/336/EEC
Basket & checkout arrive in a later phase.
- Depth
- 48mm
- Height
- 120mm
- Width
- 74mm
- Colour
- White
