Timeguard

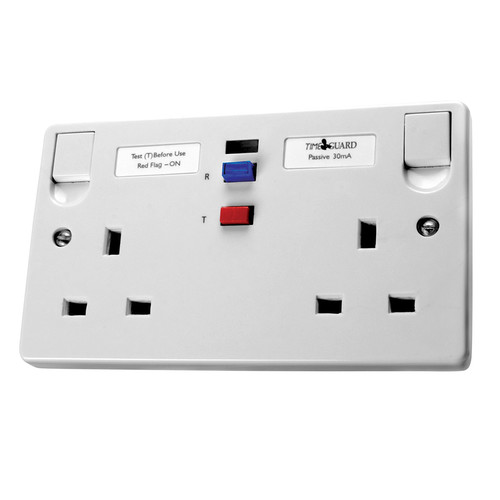

RCD Double Non-Latching Socket 2 Gang White
Code: RCD01WAVN
£34.12
In stock (5)
The RCD Double Non-Latching Socket circuit breaker simply replaces an existing single socket outlet. The contacts break when power supply is temporarily lost.
For more information, please click on the downloads tab.
Features
- Protects appliances from possible fire hazard
- Manual reset
- Extra fast action - trips out within 40 milliseconds (BS 7288)
- Automatically disconnects both Live and Neutral connections leaving Earth connection intact
- Trips out when the power supply is temporarily lost. A safety must for machine tool applications
- Test button for safety checks
- Still protects with lost neutral
- Still protects with pulsating DC earth fault currents
Specification
- Type: Non-Latching
- Trip Speed: BS 7288 - 40ms
- Contact Break: Double Pole
- Fully Complies with: BS 7288 (RCD performance) and BS 1363 (socket outlet conformance)
Basket & checkout arrive in a later phase.
- Compliance
- BS 1363 & BS 7288
- Contact Break
- Double Pole
- Rated Trip Current
- 30mA
- Type
- Non-Latching
- Depth
- 20mm
- Height
- 85mm
- Width
- 146mm
- Trip Speed
- BS 7288 - 40ms
- Voltage
- 240V
- Colour
- White
- Construction
- Plastic
- IP Rating
- IP00
