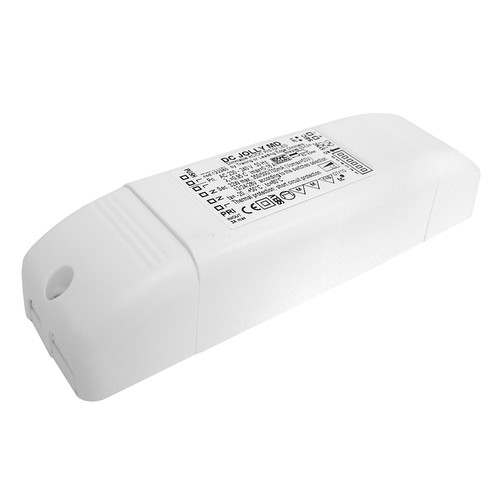

Resistive Load Dimmable LED Driver 17W-22W 350mA-750mA 12V-28V
Code: DCJOLLY MD 240V
£41.09
In stock (159)
The DCJolly MD is a revolutionary multi voltage power supply which allows LEDs to be dimmed from a regular dimmer.
The DCJolly is powered by a 240V input, which means that only 2 wires are required in order to be able to dim the LED circuit. A series of dipswitches gives the user the option to flick the output to any of the following voltages (and maximum loads):
350mA (17W), 500mA (24W), 550mA (25W), 700mA (32W), 750mA (32W), 12V (10W), 24V (20W), and 28V (22W).
The DCJolly does not have a minimum load to adhere to but you would still have to follow the minimum loads of the dimmer module you are using. This would usually be 25W - 60W, depending on the dimmer being used.
Basket & checkout arrive in a later phase.
- Depth
- 35mm
- Length
- 166mm
- Width
- 47mm
- Amperage
- 350mA, 500mA, 550mA, 700mA, 750mA
- Maximum Wattage
- 32W
- Colour
- White
- Construction
- Plastic
- Dimmable
- Yes
