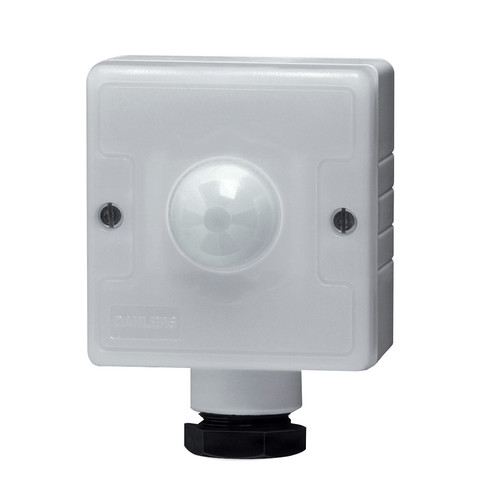

Compact Person Detector PIR White 1500W

The Compact Person Detector Switch will switch outdoor lights on when a person approaches. Welcomes friends and deters intruders. Ideal for security and convenience. A compact design for controlling new or existing outdoor lights.

Features

• The COPD is suitable for external mounting
• The maximum load must not exceed 6 amps of resistive load or 4 amps of inductive, fluorescent or discharge load, with a 230VAC supply.
• The switch will turn the lights on for between 2 to 20 minutes according to the setting of the vertical adjuster spindle inside the housing.
• Whenever a person is detected the timer always starts again from the beginning of the set time lag.
• The Photocell can be set so that lights do not switch on during the day.
• Compact polycarbonate housing.

Loading

• Up to 6 amps (1500W) of incandescent or mains halogen lamps.
• Up to 4 amps (1500W) of electronic and wire wound transformers, fluorescent lamps (high frequency or switch start).
• Up to 2 amps (500W) of CFL, LED Drivers and LED lamps and fittings.
• Up to 1 amp (250W) of fans.
