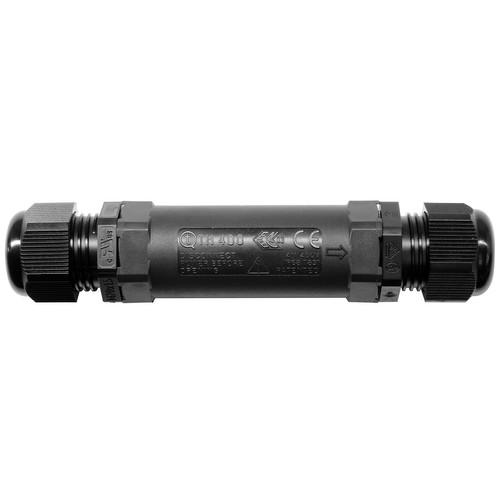

Waterproof 3-Pole Inline 5-13mm TeeTube Cable Connector 4mm² Conductor Black

Et Lumiere

Waterproof 3-Pole Inline 5-13mm TeeTube Cable Connector 4mm² Conductor Black

Code: TTK20BK 3P IP68

£9.98

In stock (49)

The IP68 5-13mm Cable Gland is used to join cables together and protect against continual immersion. Join your external cable runs with confidence.

Specifications

  • Type of Installation: Joint connector (re-usable/re-accessible)
  • Type: In-line connector
  • Max Current: 32A
  • Max Voltage: 450V
  • Number of Poles: 3
  • Terminations Thread/Tightening Torque: M3 - max. 0.8 Nm
  • Max Conductor Size (Sq mm): 4
  • Tightening Torque of Cable Gland-Connector 2.5 Nm
  • Tightening Torque of Nut-Cable Gland: 2.5 Nm
  • IP Rating 68
  • IK rating: IK08
  • Temperature rating of -40°C to +125°C

Basket & checkout arrive in a later phase.

Length
120mm
Width
25mm
Colour
Black
IK Rating
IK08
IP Rating
IP68
