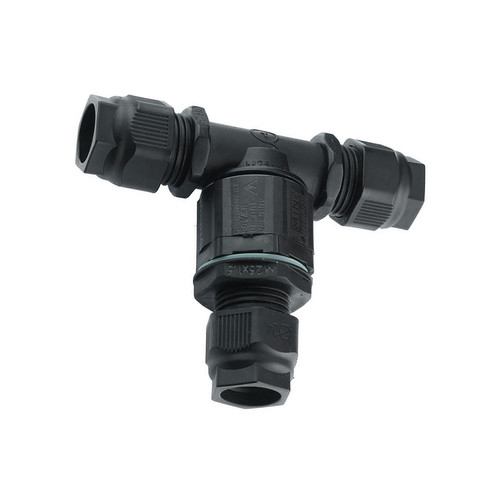

Waterproof 3-Pole TeeTube Mini T-Splitter 7-13.5mm Cable Connector 4mm² Conductor Black
Code: THB390 T 3P IP68
£15.31
In stock (1)
The IP68 5-13mm 'T' Cable Gland is used to join cables together and protect against continual immersion. Join your external cable runs with confidence.
Specifications
- Type of Installation Joint connector (re-usable/re-accessible)
- Type: Junction connector
- Overall Dimensions: 32.0 x 97.0 x 77.0mm
- Cable Entries: 3m
- Max Current: 32A
- Max Voltage: 450V
- Number of Poles: 3
- Conductor Size (Sq mm): 4
- Cable Sheath Stripping Length: 8mm
- Minimum Cable Diameter: 7mm
- Maximum Cable Diameter: 13.5mm
- Tightening Torque of Cable Gland-Connector: 2.5 Nm
- Tightening Torque of Nut-Cable Gland: 2.5 Nm
- IP68
- IK rating IK07
Basket & checkout arrive in a later phase.
- Length
- 90mm
- Width
- 70mm
- Colour
- Black
- IK Rating
- IK07
- IP Rating
- IP68
