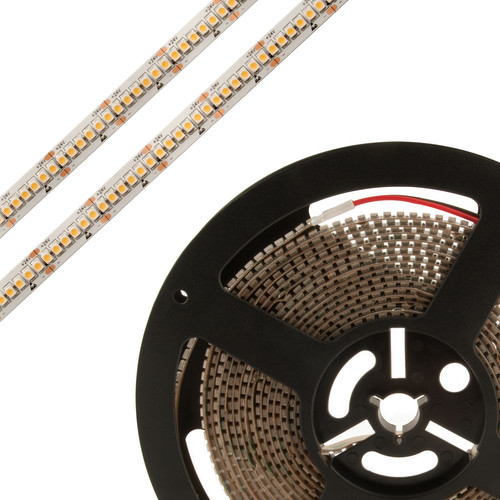

LED Strip Flexible Tape Ultra Bright Seamless 3m (240xSMD 3528 LEDs/m) 24V 57.6W (19.2W/m) 3000K Warm White

Et Lumiere

LED Strip Flexible Tape Ultra Bright Seamless 3m (240xSMD 3528 LEDs/m) 24V 57.6W (19.2W/m) 3000K Warm White

Code: TAPEC240HP3M WRM

£38.70£48.38 Sale

In stock (39)

LED Strip Flexible Tape is a versatile light source with a wide range of uses that can be either decorative or functional. Easy to install with pre-fitted double-sided backing tape and can be cut to a specific length.

Anything from a short linear run of light for under cabinet or plinth lighting, shelving or back lighting mirrors to large scale applications such as low level lighting in corridors, dropped ceilings, cove lighting, doorways, handrails and staircases can be achieved. A wide range of extrusions and diffusers are available to suit any location and produce different effects. For example a continuous, seamless line of light can be created when mounted in Maxi extrusions combined with Liger diffusers.

This LED tape is joined together via pins with a maximum of 5 metres of tape on a power cord. Power cord is included. Multiple power cords can be connected to one driver. This LED tape can be cut every 25mm. The maximum distance between the power supply and LED tape is 10 metres. We recommend using 1.5mm² cable. The maximum total length is 15 metres for the LED tape and power supply combined.

This LED tape is dimmable and we recommend using the Triac LED Dimming Driver. Ensure the dimming driver you use exceeds the total wattage of the LED Tape.

Female connectors at both ends of the LED tape. Two male power leads are also included.

This LED Tape must be used with extrusions. The Micro extrusion must be used without a diffuser.

Please note: TAPE PWR SNG100 power cord is NOT compatible with this LED Tape.

Basket & checkout arrive in a later phase.

LED Chip
SMD 3528
LED per Tape
720 (240/metre)
Cut Length
25mm
Height
2mm
Length
3m
Width
10mm
Maximum Wattage
57.6W (3 x 19.2W)
Voltage
24V DC
Construction
Plastic
Dimmable
Yes
IP Rating
IP20
Colour Rendering Index
90
Colour Temperature
3000K Warm White
Lumens
5100 lm
Lumens Per Metre
1700 lm/m
Lumens Per Watt
89 lm/W
Watts Per Metre
19.2 W/m
