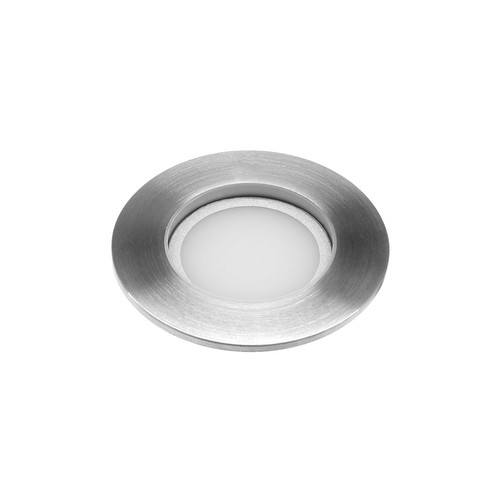

LED Recessed Uplight 36mm 45° 24V Blue 0.5W

Collingwood

LED Recessed Uplight 36mm 45° 24V Blue 0.5W

Code: GL018 BLUE

£85.14

In stock (3)

This mini (36mm diameter) path marker/ground light is ideal for both domestic and public applications. A modern waterproof design makes this unit a must for decking areas, lobby's and walkways. Combined with exceptionally low power consumption, means this product is cost effective not only to buy, but also to run.


Power Supply

A 24V power supply is required for this fitting. Please use the chart below to roughly determine the correct power supply to use:

    1 - 16 unit = DC1024VLS
    17 - 36 units = DC21024V
    37 - 46 units = RS2524
    47 - 90 units = RS5024
    91 - 180 units = RS10024

If you require more than the maximum amount of fittings listed above, you will have to use extra power supplies.

Other things to remember.

This fitting needs to be wired in Parallel.

If using this fitting is an area which is likely to get wet, such as outdoors, bathrooms, and saunas. Please ensure that the driver is kept in a waterproof enclosure.

Please note the fitting is submersible up to a distance of 2m.

3m HO5RN-F rubber cable attached

Caution: Voltage drop can occur over long distances. Recommended minimum cable size 0.75mm²

For a step-by-step guide to install outdoor ground uplights in the earth, lawn, decking or patio, click here.

Basket & checkout arrive in a later phase.

Dimmable
Yes
LED Type
Luxeon
Cut Out
27mm (Diameter)
Depth
37mm
Diameter
36mm
Maximum Wattage
0.5W
Voltage
24V DC
Colour
Stainless Steel
IK Rating
IK07
IP Rating
IP68
Beam Angle
45°
