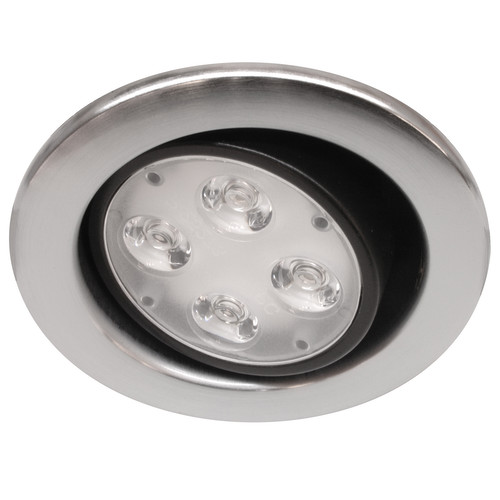

Contract Fire LED Adjustable 240V 4W Nickel

The Contract Fire LED Adjustable 240V downlight does not require a firehood as it is fire rated for up to 90 minutes. These fire rated downlights have many features such as a centralisation ring to ensure a uniform air gap between the body of the fixture and the plasterboard.

Driver Options

Switching Drivers

This fitting comes with a 350mA driver so can be simply wired to a mains supply. The supplied driver is only switchable, on or off. If you need to replace this driver choose a 350mA driver from the Switching range (LED Power Supplies).

Dimming Drivers

If you want this LED to be dimmed you will need to replace the supplied driver with a dimmable driver.

Normal Dimming
To use this fitting with most domestic rotary dimmers simply connect a resistive dimming driver. For lower minimum loads of 20W we recommend a trailing edge dimmer module.
Required parts

Dimmable LED Driver (LED Power Supplies)

Resistive Dimmer Module

Wireless Dimming
This unit can switch and dim wirelessly in conjunction with a 24V LED driver.
Required parts

WISESCENE 350mA (click link on right for associated products)

24V DC Transformer

Wise Switch (any)

1-10V
For use with 1-10V dimmer modules or 1-10V control systems. This type of dimming does not have a minimum load and the maximum is subject to the drivers load.
Required Parts

1-10V 350mA LED Driver

1-10V dimmer (click link on right for associated products)
