Et Lumiere

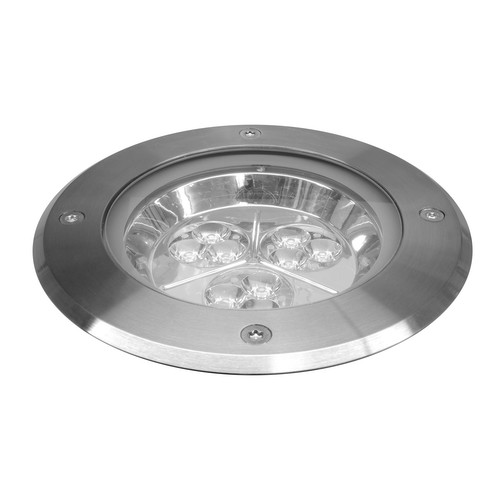

LED Recessed Uplight 10° 240V 4200K Cool White 16W
Code: HLE06301 10D C/W
In stock (20)
The Architectural Uplight is rated IP65, this allows it to be fitted into wet areas, for example outside in decking. The body of this fitting is made of high-pure die cast aluminium ZL102; the surface is finished with electrostatic powder coating, thermostatic hardening.
A LED driver is built into the fitting, simply wire to mains supply.
For a step-by-step guide to install outdoor ground uplights in the earth, lawn, decking or patio, click here.
When installing recessed ground uplights, standard junction boxes usually won’t fit inside the tight cutout hole drilled into stone or concrete patios. If you are fitting them into timber decking, you will have plenty of void space underneath for easy wiring, but for tight patio installations, you must use a slim, waterproof gel-filled connector like Product Code: 5625/4151125
Added to your basket.
- Dimmable
- No
- Drive-Over Limits
- 20,000N
- LED Type
- Cree XP
- Number of LED's
- 9
- Operating Temperature
- -20°C ~ +60°C
- Cable Length
- 3m
- Cut Out
- 155mm (Diameter)
- Depth
- 248mm
- Diameter
- 160mm
- Minimum Floor Depth
- 215mm
- Maximum Wattage
- 16W
- Requires Driver
- No
- Colour
- Stainless Steel
- Construction
- Aluminium
- IP Rating
- IP65
- Beam Angle
- 10°
- Colour Temperature
- 4000K Cool White
- Lumens
- 1100 lm
- Lumens Per Watt
- 69 lm/W
