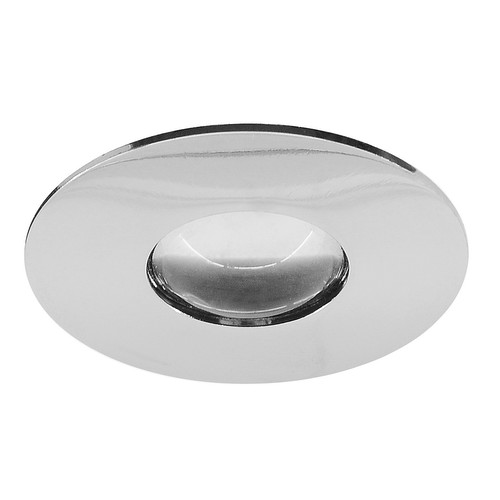

LED Bubble 2 Skirting Light 1W 350mA Warm White 3200K Chrome
Code: LEDBUBBLE2 CH/WW
In stock (300)
It has a high power 1 watt LED.
The cut out is 26mm when using either of the two fixing clips. It can be glued in with a cut out of 22mm.
Two fixing clips included for 25mm or 50mm plasterboard - see installation instructions below for further information.
This fitting needs to be wired in series - see wiring diagram below.
This LED is available in a stainless steel, white metal or chrome finish bezel that has a lens that produces a 45° angle of light.
Many different LED power supplies are available that allow you to achieve more with your lighting. Simply select the correct wattage depending on how many total LED fittings it will be connected to.
Technical
LED Driver Options
- Switching - Use this driver for on/off control. Cannot be used for dimming.
- Dimming - Normal - Use this driver for dimming control. Some dimmers may require a resistive dummy load to meet the minimum load requirements.
- Dimming - 1-10V - Use this driver with a 1-10V dimmer modules or control systems. This type of dimming does not have a minimum load.
Basket & checkout arrive in a later phase.
- Dimmable
- Yes
- Cut Out
- 22mm (Diameter)
- Depth
- 14mm
- Diameter
- 29mm
- Amperage
- 350mA
- Maximum Wattage
- 1W
- Colour
- Chrome
- Construction
- Metal
- IP Rating
- IP44
- Beam Angle
- 45°
- Colour Temperature
- 3200K Warm White
